Do you have a specific need?
We design a tailor-made solution, perfectly adapted to your product and your organization.
At MCS Process, we adapt our grading machines according to your production volume, your technical constraints and your available space.
Our machines can be configured with 1 to 4 channels, a variable number of outputs, and integrated with other add-ons.

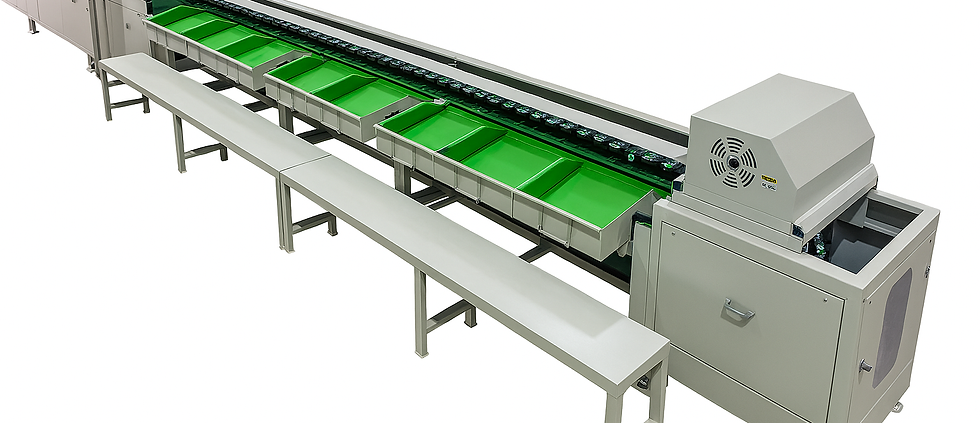

2 Lanes, 12 Outputs
High-speed automatic sorting for industrial performance
Type of sorter: 2-lane
Capacity: 50,000 pieces/hour
Sorting accuracy: ±5 g
Number of outputs: 12 weight-based grades, with green foam reception tables for gentle handling
Operating principle:
Computer-controlled electronic sorting, based on the individual weight of each fruit.
The system includes: weighing assembly, drop unit, and collection unit.
Dual-sided outputs:
-
Optimizes working speed
-
Gives operators more time for packaging
Designed for high throughput, this sorter delivers high-precision sorting, excellent product flow management, and optimized operator working comfort.
1 channel with foam table (6 outputs)
Simple and precise sorting with respect for the product at each stage
Sorter type: 1-lane
Capacity: 20,000 pieces/hour
Sorting accuracy: ±2g
Number of exits: 6 side exits, with integrated foam packing table at each chute to avoid shocks on the mangoes
Conveying system: V-shaped conveyor to guide the mangoes smoothly to the weighing cell
Sorting principle: Automatic classification from lightest to heaviest weight
Dimensions: (to be completed according to your exact model)
A compact and efficient solution for medium production, guaranteeing reliable weight sorting and gentle handling of sensitive fruit.
Inspection table
Simple and effective visual quality control at the end of the line
-
Placed after the drying module, the inspection table allows operators to identify and remove fruit of insufficient quality (e.g. damaged mangoes).
-
PVC strip structure: smooth, hygienic and easy to clean surface
-
Dimensions: 4000 × 800 × 1500 mm (L × W × H)
-
Power consumption: 0.5 kW
-
Ideally designed for 1 to 3 operators per station depending on the width
-
An essential link to guarantee final quality before packaging.
Brusher / Dryer
Gentle cleaning and drying for a flawless finish
-
20 brushes arranged under 4 blower groups ensure efficient drying after washing.
-
Brush diameter: 125 mm
-
Material: Extra soft nylon, to preserve the appearance of delicate fruits (e.g. mangoes).
-
Blower: 5 groups – 10 fans in total
-
Fan type: Axial flow for high efficiency
-
Lower collection tray for water recovery (belly pan)
Ideal for sensitive products with fragile surfaces, while maintaining a fast and consistent flow rate.
Mango sorting line
Washer
Gentle cleansing with controlled agitation for sensitive fruits
Machine Type: Bubble Wash Tub
Dimensions: 3000 × 600 × 1448 mm (L × W × H)
Useful volume: 2.45 m³
Material: Fully welded stainless steel (structure, tank and conveyor)
Swirl system: Bubble generator integrated under the tank, allowing controlled agitation which removes impurities without damaging the product
Product extraction: By roller elevator, allowing row-by-row evacuation
Installed power: 2.75 kW
Variable speed drive: Schneider inverter for fine adjustment of the flow
A reliable solution for pre-treating sensitive fruits such as mangoes, while guaranteeing hygiene and performance.
